Aerogel is the best insulation material known in the world. It was first used by NASA in space technologies. The raw material used in its production is silica. Silica Aerogel produced with Sol-Gel Technique is also the lightest solid matter known.

Aerogel is comprised of 95-98% air. Because of its porous molecule structure, heat transfer between cells is at its minimum. Its heat conductivity factor is 0,016 W/m.K.

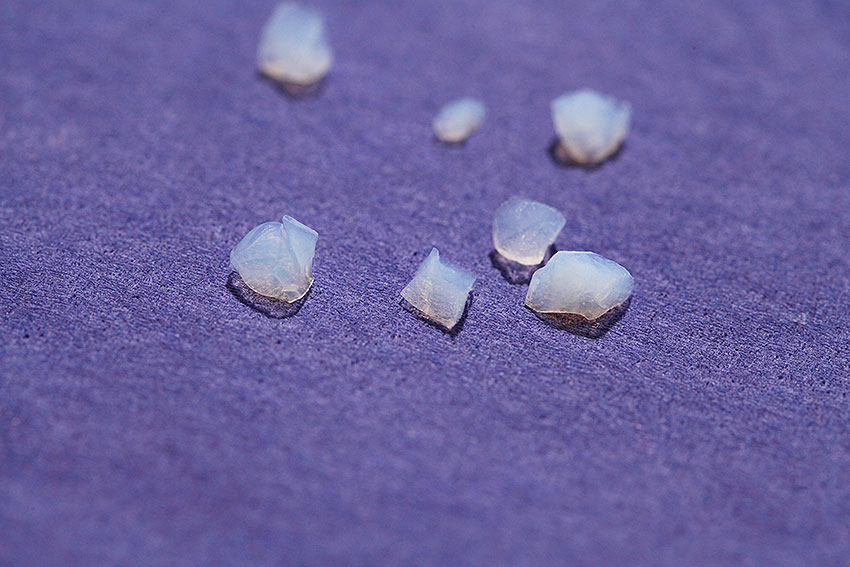

Levron Aerogel Granule

Levron Aerogel General Specifications

  • Super Insulation: Manufactured with Nano Technology, Silica based super hydrophobic Levron Aerogel is able to work between a heat range of -200o C and +650 o C and produces superior performance compared to conventional insulation materials.
  • Super Hydrophobic: Surface contact angle is 165 degrees. Water and humidity does not affect the heat insulation performance.
  • Soundproofing Feature: Has the capacity to absorb sounds up to 25 decibel
  • Fire Resistance: Hydrophobic attributes do not show signs of deterioration up to 650 C.
  • Transparent: Transparency can be adjusted for the specific projects
  • Thermal Barrier Feature: Thermal conductivity: 0,016 W / m.K
  • Excellent energy damping
  • Forming a vibration barrier: Noise cancellation for mechanical vibrations that have frequencies between 1000 – 2000 Hz
  • More than 90% air permeability
  • High performance heat insulation under any condition
  • Oleophilic: can be used to clean oil leakages, absorb heavy metals and dangerous chemicals
  • Cellular Structure; 1 gram of Aerogel has a surface area of 700m2. It is being used for filtration and to capture space dust.
  • Environment and Human Friendly: Does not have harmful effects on human health. No harmful effects on the environment as waste. It is also used in cosmetics industry to adjust skin oil levels.
Levron Aerogel General Specifications

Levron Aerogel Technical Specifications

Operating Heat Range -200°C and +650°C
Density 0.115 gr/cm3
Thermal Conductivity Coefficient 0,012-0,016 W/m.K
Porosity 90-95%
Color Light cream
Steam Permeability 5-5.5μ
Fire Class A1
Compression Strength 40kPa
Ecological Impact 4.32 kg CO₂ for kg
Specific Heat 1000 J/kg/K
pH 8
Granule/Particle Dimension Between 1 micron - 4mm
Surface Area 700 m2/g
Surface Contact Angle > 165 degrees
Water Repellent Superhydrophobic
Dielectric Constant K<2
Sound Absorption -20 db (1/100) (500 Hz)

Levron Aerogel Granule Packaging

Levron Aerogel Technical Specifications

Product Code Product Explanation Package Content (kg)
IPG1001 Levron Standart Aerogel Granule 5 kg
Levron Standart Aerogel Granule 20 kg
Levron Standart Aerogel Granule 120 kg

Contact us for pricing and order.
